INDUSTRIAL MANIPULATORS WITH BRIDGE OVERHEAD CRANES

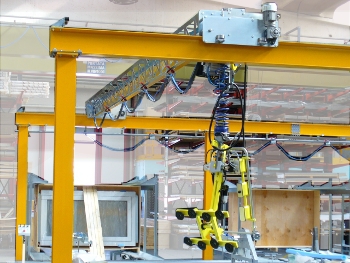

Manipulator for hooking doors and glass

Overhead crane assembly with industrial manipulator for lifting and moving loads

Manipulators with bridge crane, meet the need for lifting and handling objects not too heavy (max 100 kg) in large areas. This need is felt in the fitting, production or packaging department. Our bridge crane industrial manipulator allows the coupling and the precise positioning of heavy and bulky components that would require two operators to be moved. The innovative feature of the manipulator bridge crane is the large transverse stroke which makes itunique and ideal for covering large areas both longitudinally and transversely.


Our product combines the features of various systems on the market for years. From the bridge crane takes the magnitude of the operating area that reaches 10 meters by 20 meters and beyond. From jib crane takes the easy, horizontal movement of the load: the load moves in the transverse direction manually while in the longitudinal direction, the load moves through induction motors with inverter. The speed is controlled by a joystick on the gripping element.

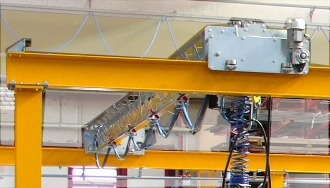

Bridge crane beam on which the manipulator runs

Overhead crane that supports the manipulator allowing the load to be moved over large surfaces

The gripping and lifting of the load is achieved with an electronics industrial manipulator. The gripping handle is sensitive to the action of the hand and raises or lowers the load according to the direction of the force exerted. The manipulator is provided with a gripping element for each specific application.






The characteristics of the overhead crane manipulator are therefore:

  • large area covered 200 square meters
  • High positioning accuracy
  • high speed is both horizontal and vertical
  • easy gripping of the product





Download the pdf catalog of industrial manipulators crane for large areas Overhead crane manipulators pdf catalog
